Harmony XB4/XB5
Discover our complete range of modular push buttons, switches, and pilot lightsSimplicity and fast installation Quick assembly and fast mounting in a standard 30 mm hole with flush options. Multiple connection types: screw clamp, connector, Faston, spring terminal or PCB.
Modern design Cleaner panel and machine aesthetics with a vibrant, easily distinguishable color palette that improves perceived quality and operator clarity.
Modularity for reduced inventory Highly configurable for industrial needs — pushbuttons (illuminated or not), selector switches and pilot lights. Panel builders can mix heads, contacts and accessories to create thousands of combinations from a few stocked parts.

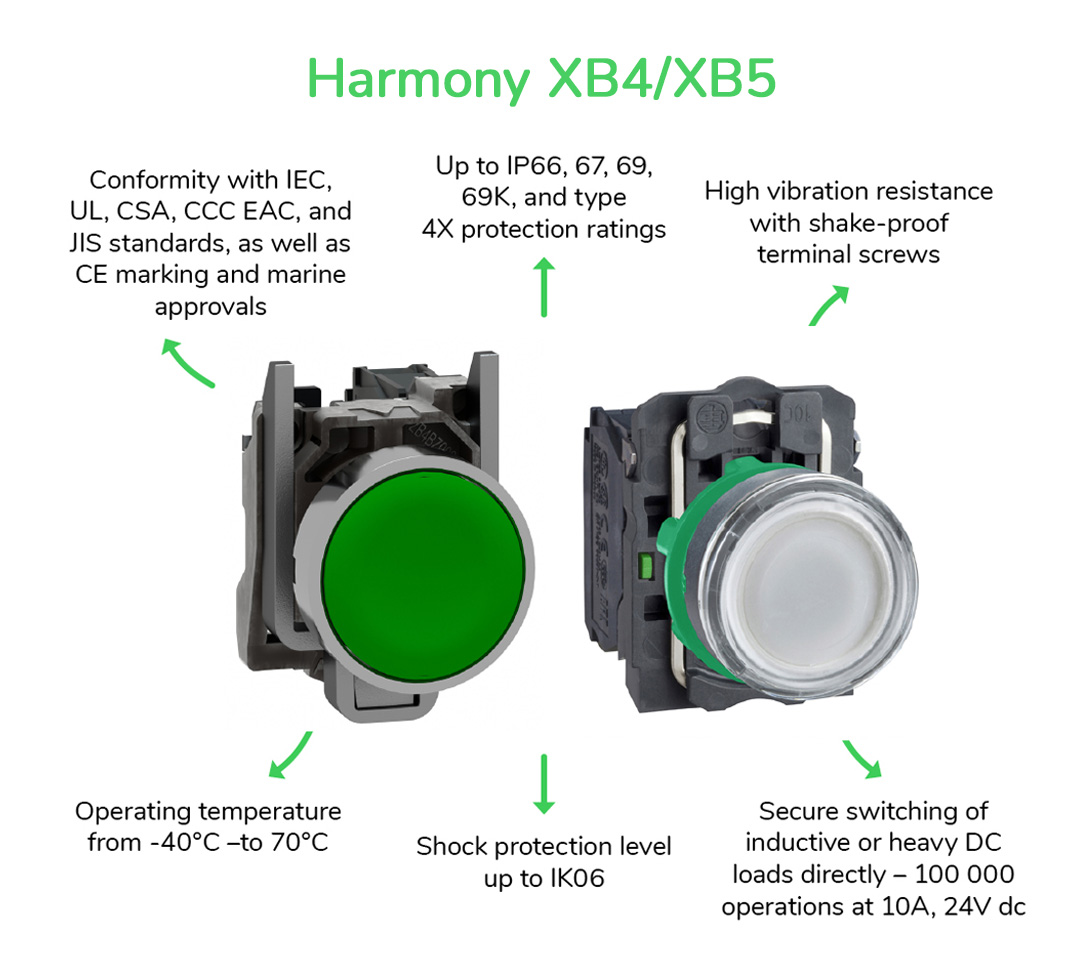

Robust and durable Built for harsh conditions: operates from -40°C to +70°C and suited to outdoor or high-temperature environments. Rated IP66/IP67/IP69/IP69K and NEMA 4X/13 for protection against dust, water, steam-cleaning and corrosion. Strong head-to-body mechanical connection ensures long-term reliability.

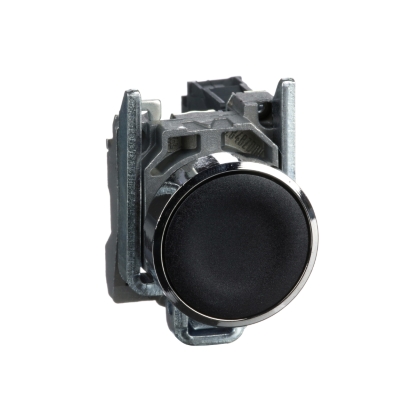

- Harmony XB4: Ø 22 mm metal control and signaling units

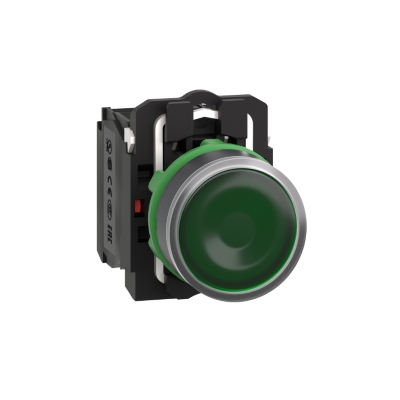

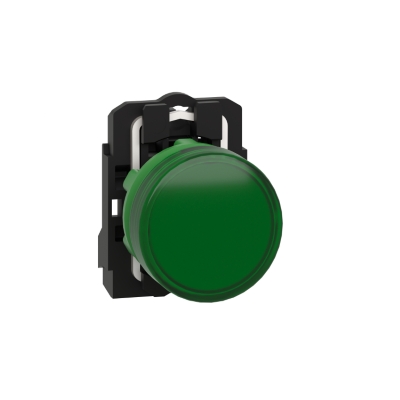

- Harmony XB5: Ø 22 mm plastic control and signaling units
Technical Benefits
Popular products

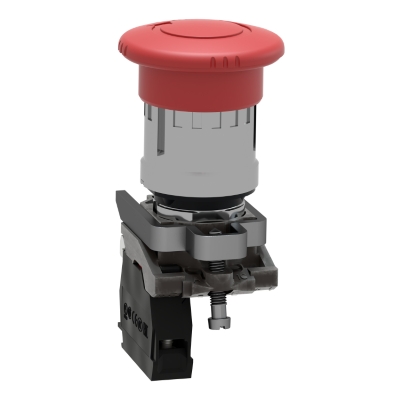

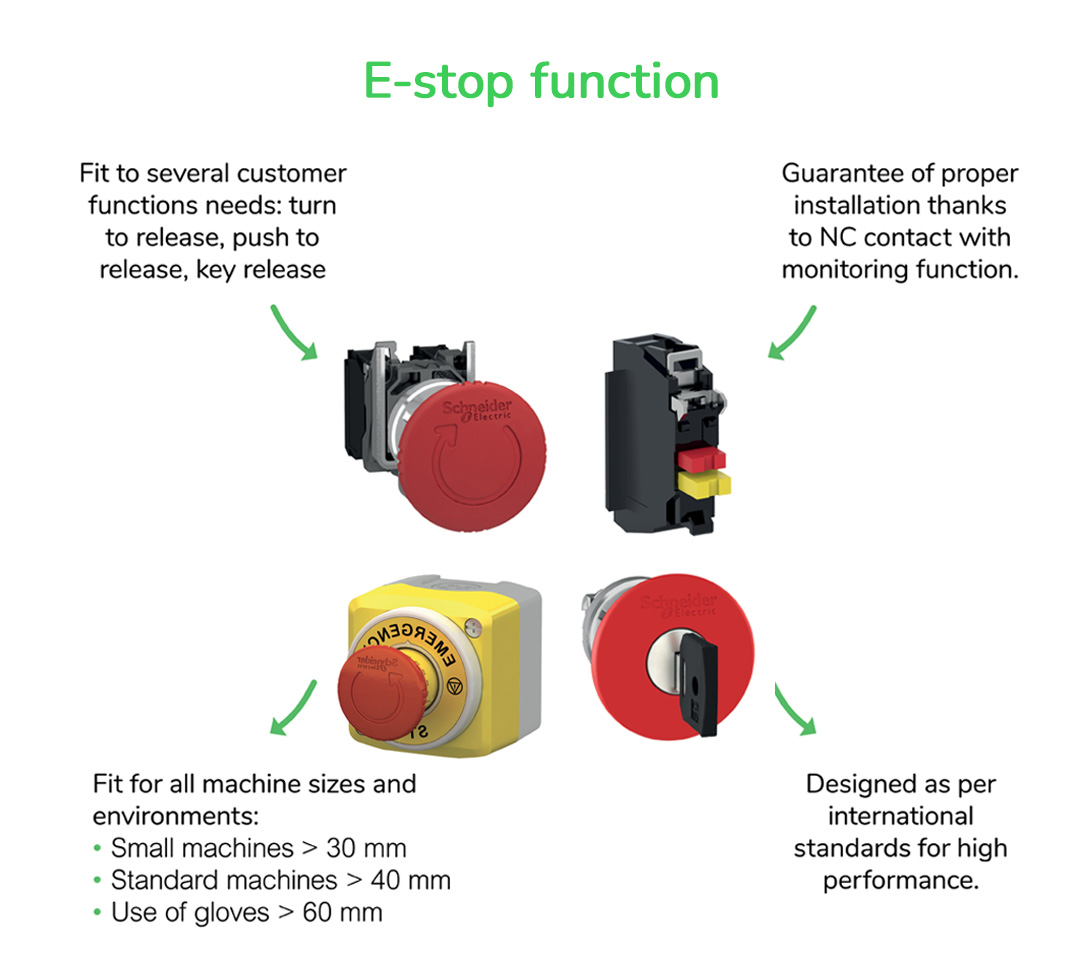

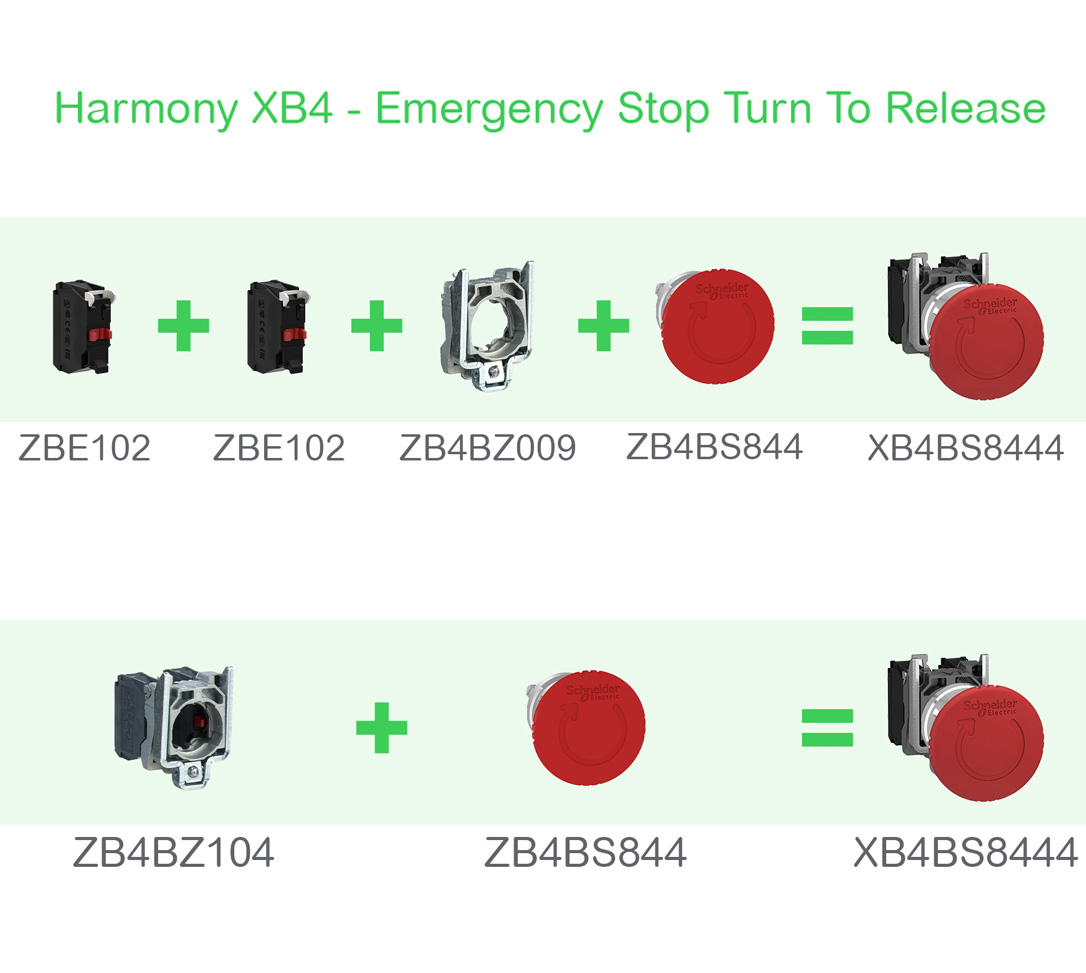

Emergency switching off push button, metal, 22mm, red mushroom 40mm, latching, turn to release

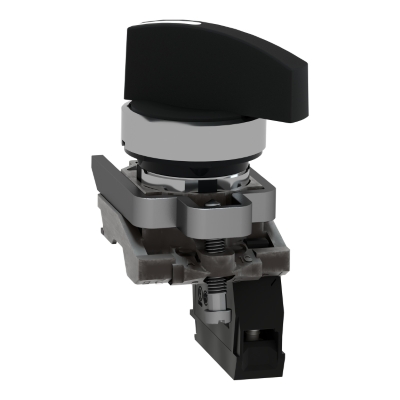

Selector switch, black, 22mm, 3 positions, stay put, 2NO
Push button, metal, flush, black, 22mm, spring return, unmarked, 1NO
Illuminated push button, metal, red flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC
Pilot light, grey plastic, green, 22mm, universal LED, plain lens, 110-120V AC
Illuminated push button, plastic, flush, green, 22mm, universal LED, plain lens, 1NO + 1NC, 110...120V AC
Complete your set
Related Parts
Why choose Schneider Electric's Harmony Pushbuttons?
Do you need help to choose your Harmony Pushbuttons?
Use this simple selector to find the best fit for your needs. Help Me ChooseFAQs

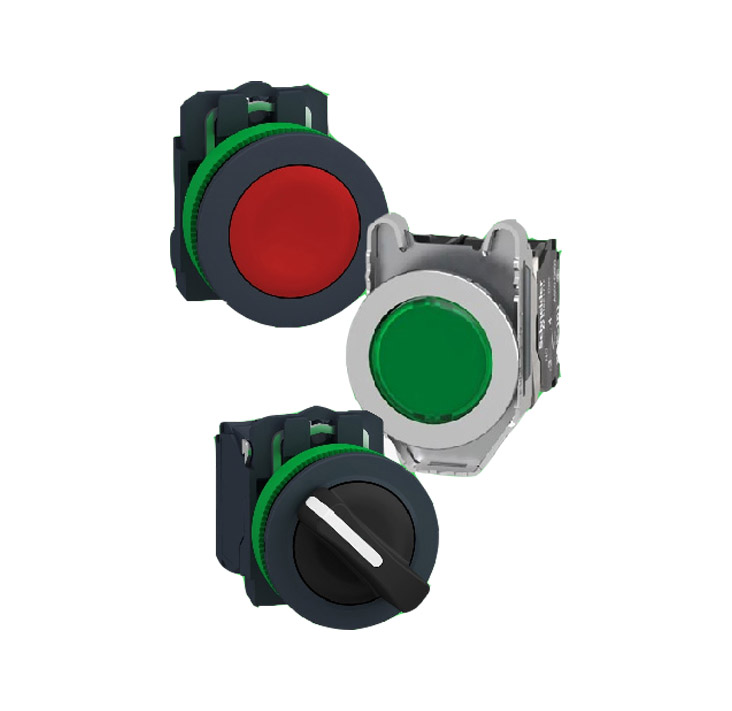

The XB4 series features a chromium-plated metal bezel designed for heavy-duty industrial environments requiring high impact and mechanical resistance.
The XB5 series features a double-insulated plastic bezel ideal for environments requiring chemical resistance or electrical isolation.
Both share the same 22 mm mounting size and modular system.
Choose XB4 series for harsh, high-impact, or outdoor environments such as mining, automotive, and heavy industry.
Choose XB5 series for chemically aggressive areas such as food processing, water treatment, or where double insulation is required.

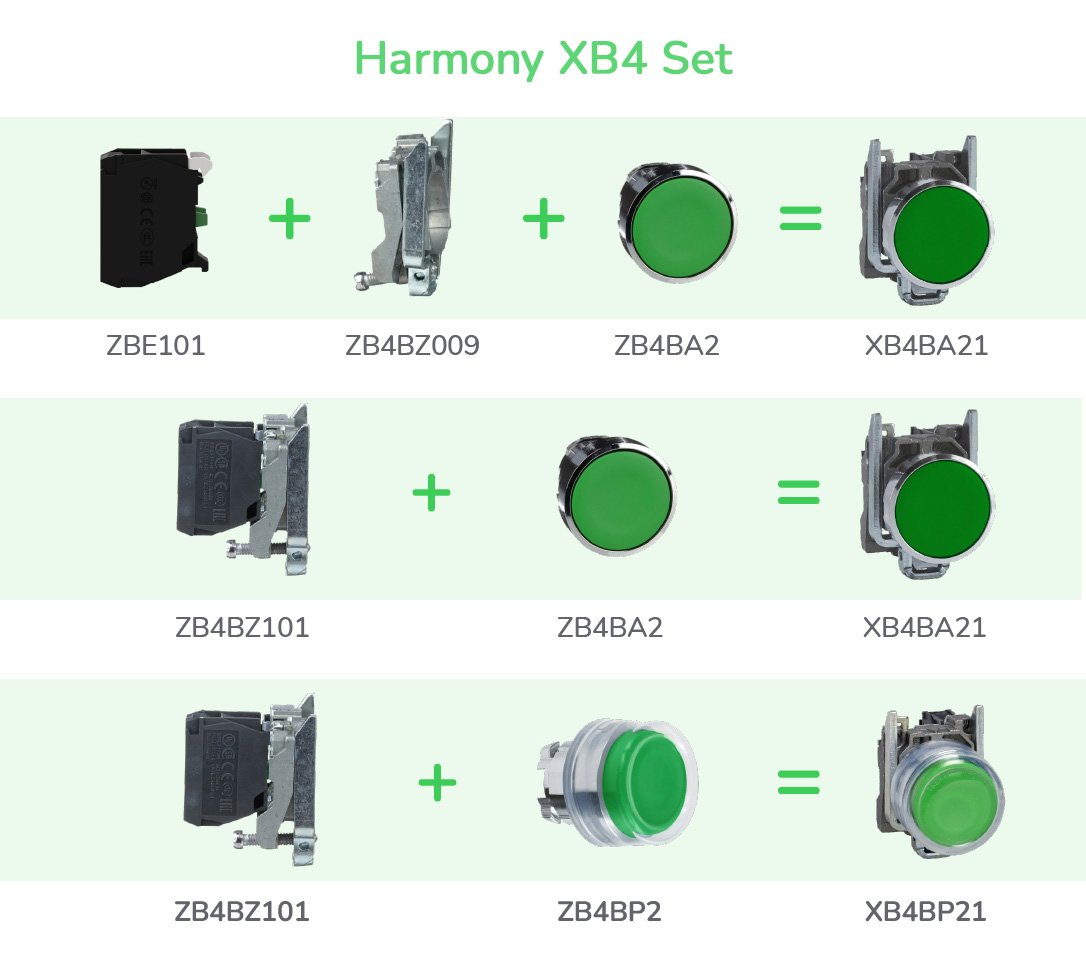

Each pushbutton consists of three core parts.
Operator Head—the actuator on the front of the panel
Body/Fixing Collar—the mounting base that locks the head to the panel;

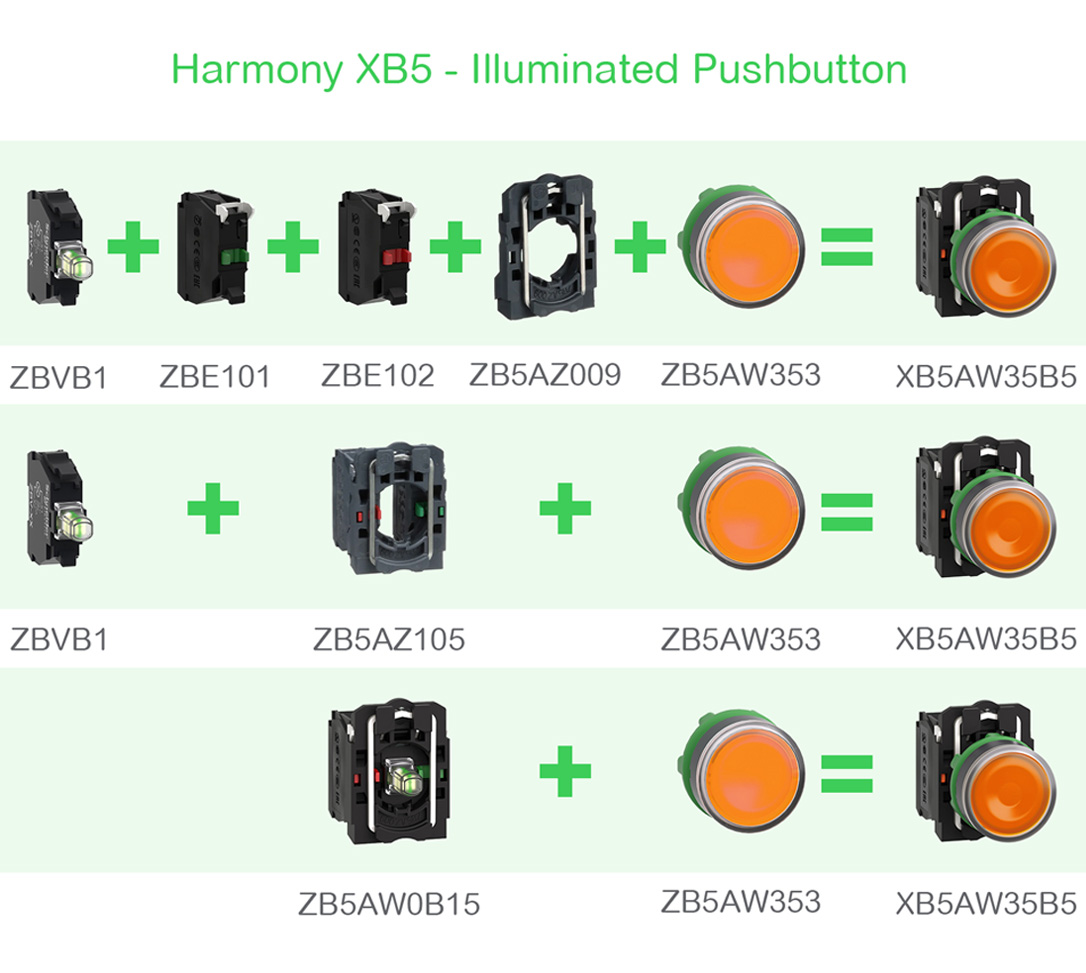

Electrical Blocks—including NO/NC contact blocks and LED light blocks, which snap onto the collar.

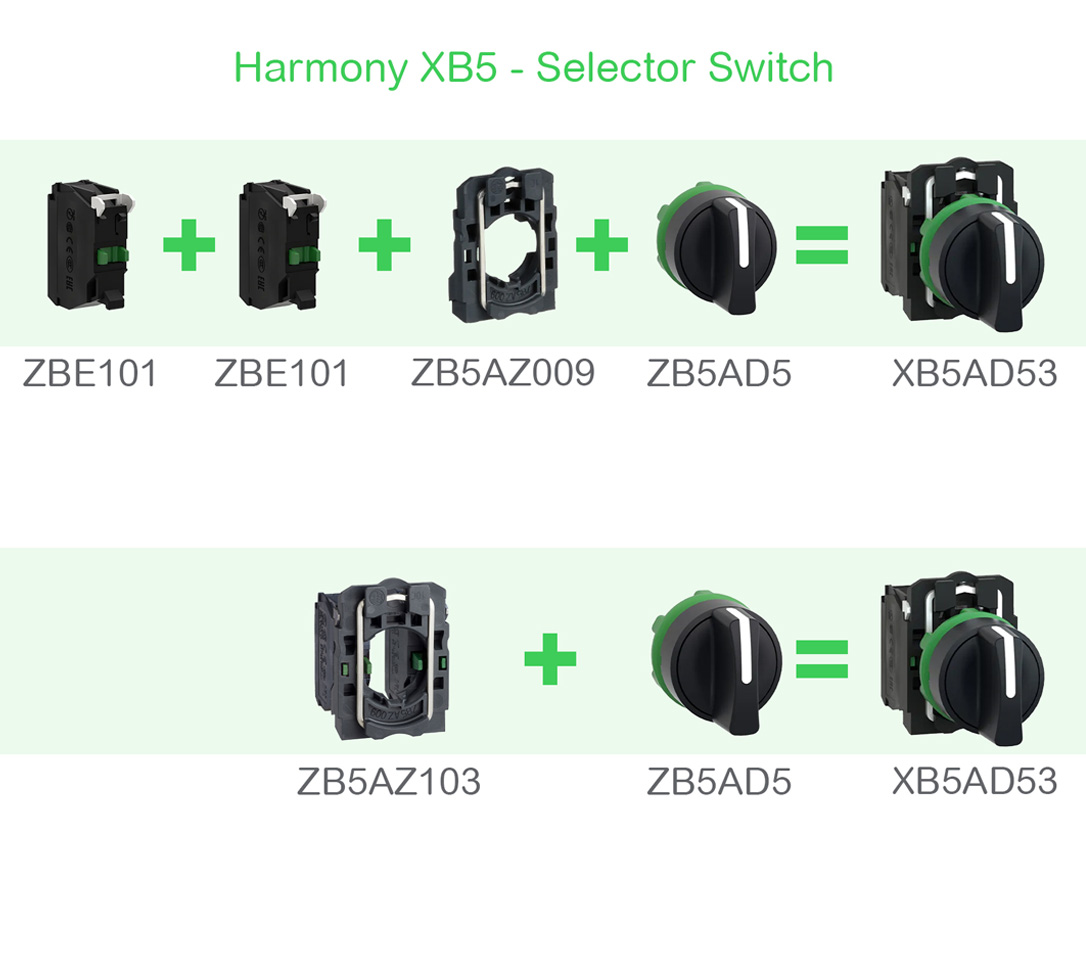

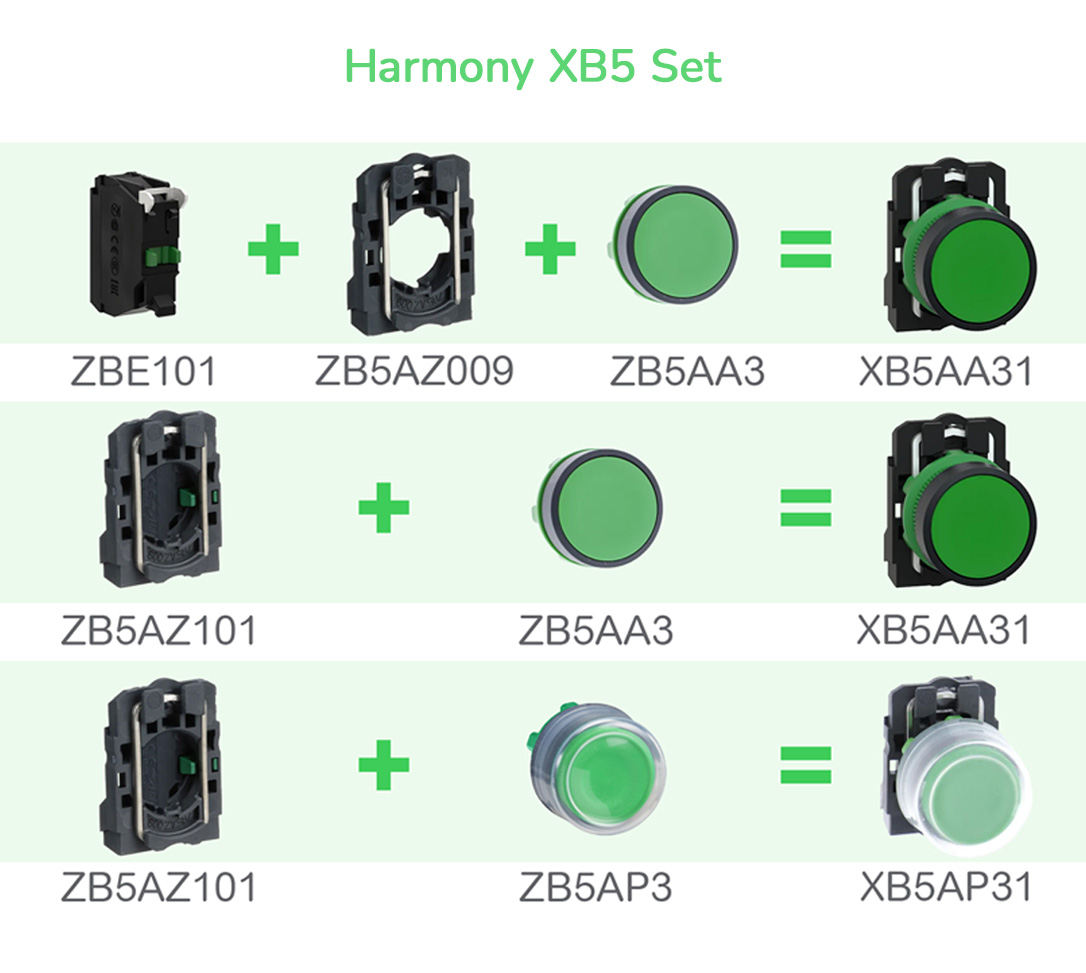

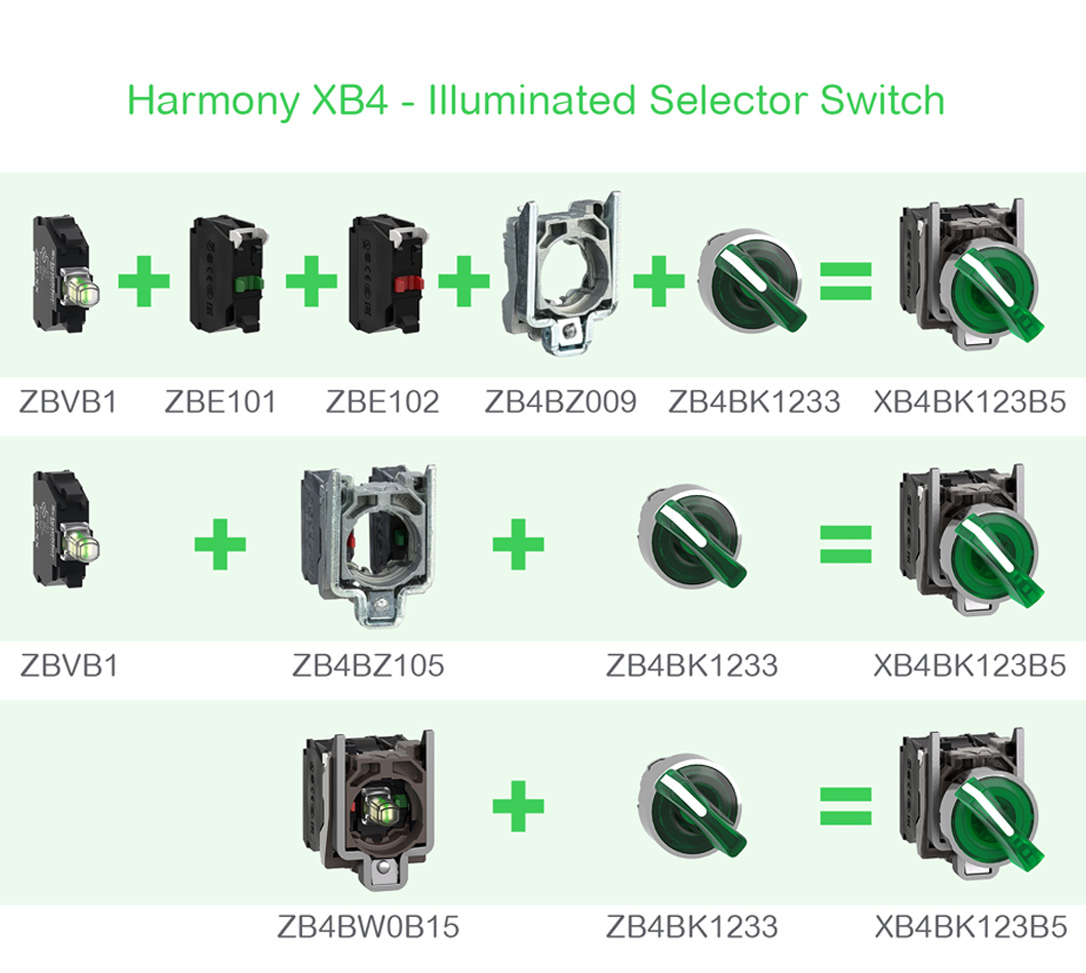

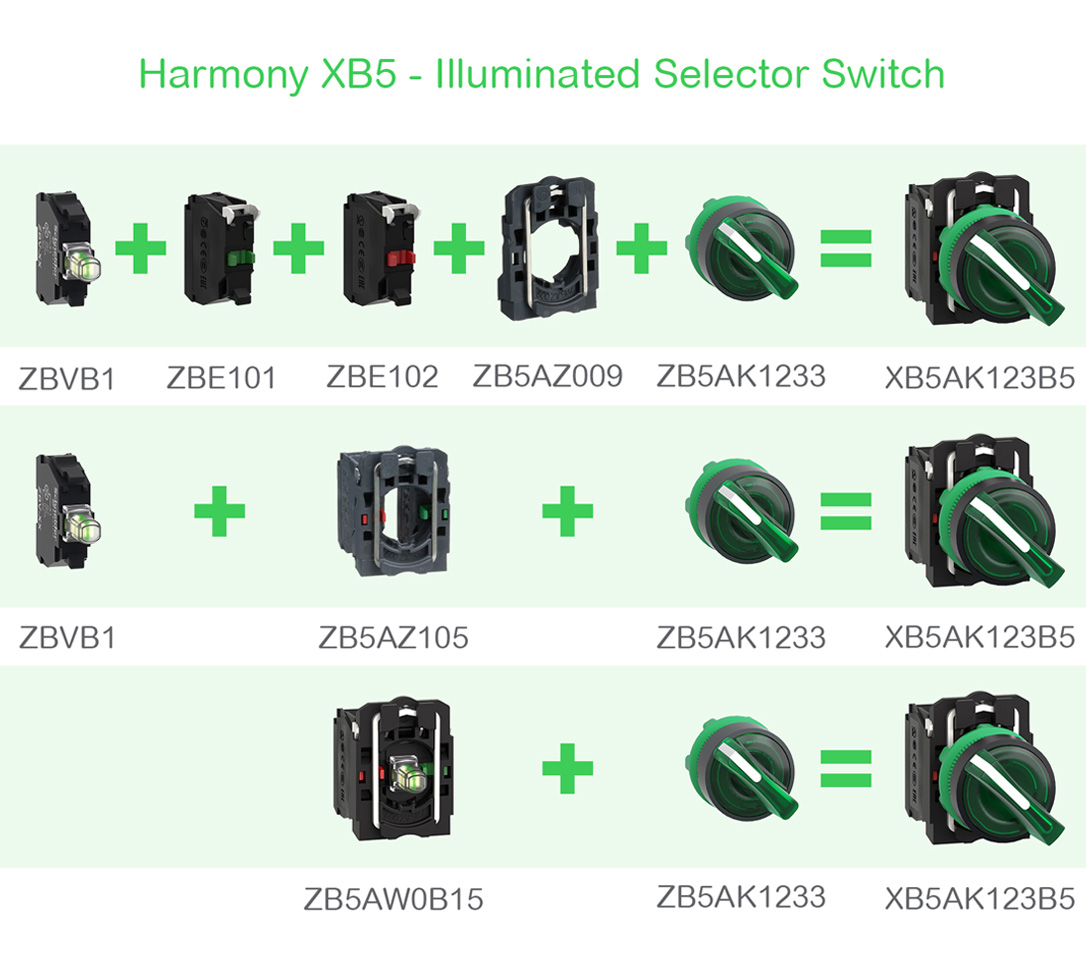

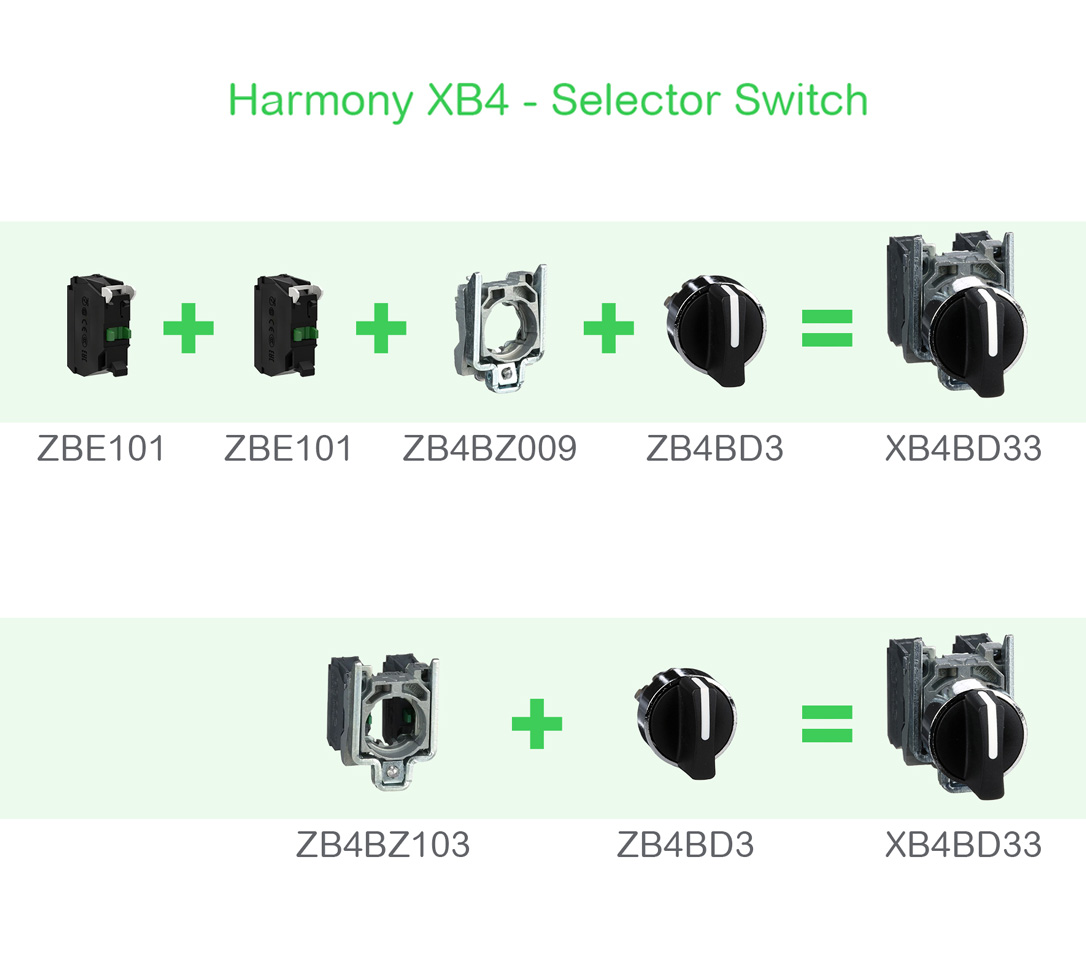

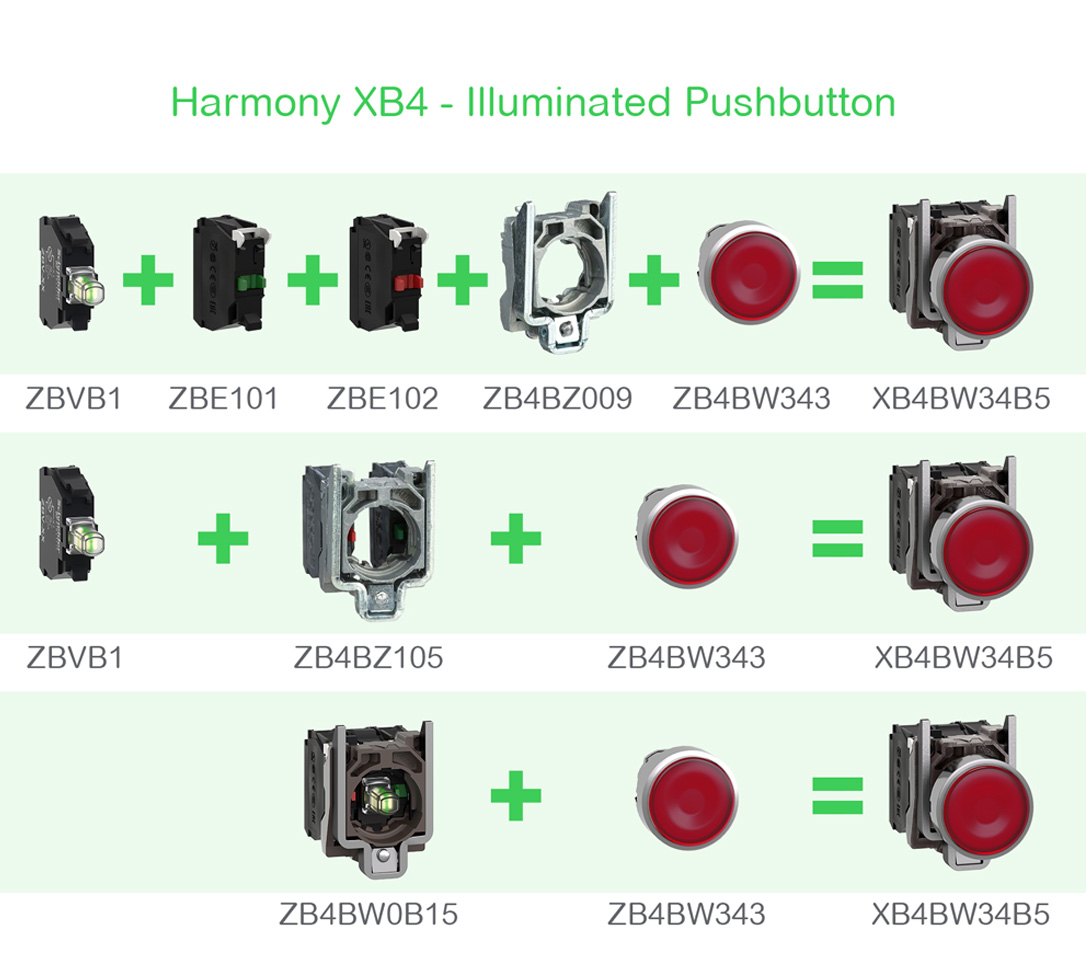

'XB' part number refers to a complete, pre-assembled unit (head + collar + contact blocks).
'ZB' part number refers to an individual component such as a head, contact block, or accessory.
Yes. Both series are CSA certified, UL listed, CE marked, and conform to IEC/EN 60947 standards for global machine compliance.
Yes. Complete units (starting with XB...) include everything needed for installation and are ideal for standard functions like Start or Stop buttons.
Choose loose components when customizing functions, managing lean inventory, or replacing individual heads or contacts without buying a full assembly.
Use momentary for actions such as Start, Jog, or Reset, where the operator returns automatically.
Use maintained for On/Off or mode selection functions requiring the operator to stay in position.
Yes. Operator heads can be replaced without modifying internal wiring. Contact blocks remain compatible, enabling quick upgrades and color/function changes.
Flush mounting reduces protrusion, enhances machine aesthetics, prevents accidental activation, and improves cleanability—ideal for OEMs designing modern control panels.
No special tools are required. Insert the head into the panel cutout, snap on the collar, tighten the locking screw, and clip the contact/light blocks into place.
Yes. The XBSR series provides wireless, battery-less pushbuttons that generate their own transmission energy. Ideal for AGVs, mobile equipment, or hard-to-wire locations.
NO (Normally Open—Green) is used for Start or activation.
NC (Normally Closed—Red) is used for Stop or Emergency Stop functions. Safety circuits often require NC contacts with positive-opening operation.
