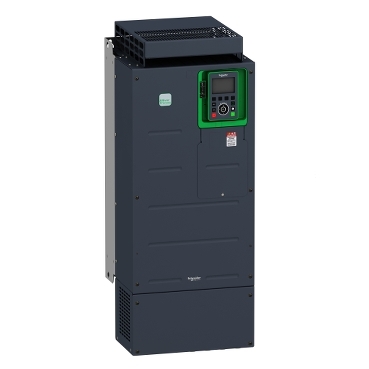

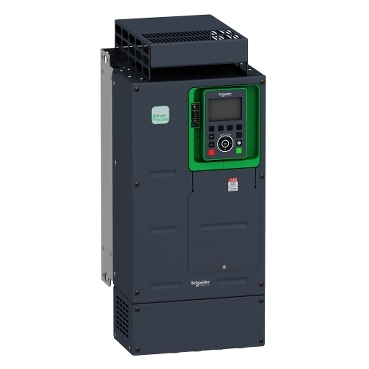

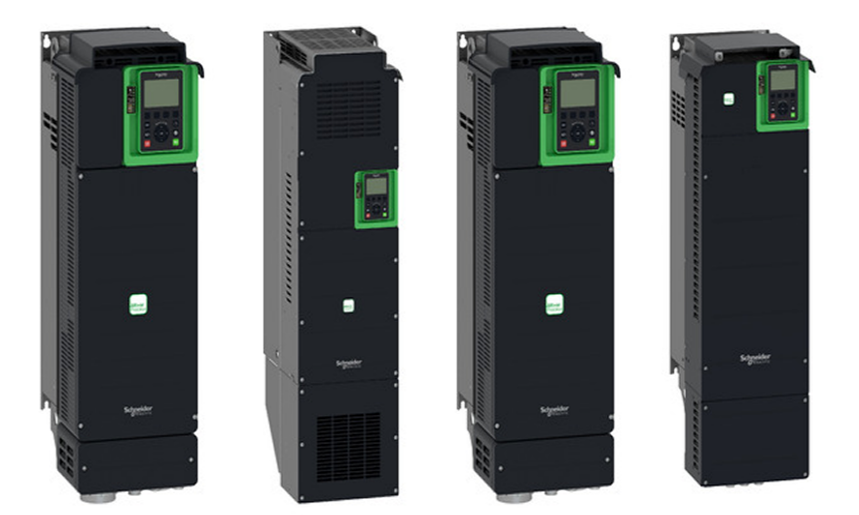

Altivar Process 930
Variable Speed Drive for conveyors, cranes or mills up to 315 kWCompact and flexible installation Wall-mounted models mount directly to panels, saving space and integrating easily into industrial setups.
Protection for industrial environments With IP21 or IP55 ratings, these drives suit dusty or humid areas without extra enclosures.
High-performance motor control They support synchronous and asynchronous motors up to 90 kW (IP21), for light or heavy-duty loads.
Integrated connectivity and diagnostics Built-in ports (EtherNet/lP, Modbus TCP), web server, and logging enable real-time monitoring and maintenance
- 0.75kW to 315kW (1-500 hp) frequency converter
- For 3 phase synchronous and asynchronous motors
- 200 V to 600 V
- IP21
Popular products
- 500-690V AC
- 30kW/40hp (normal duty), 18.5kW/25hp (heavy duty) power
- 246(w)x420(h)x242(d)mm
- CE, UL, CSA certified
- Operative to 60°C
- 600V AC
- 100hp (normal duty), 75hp (heavy duty) power
- 331(w)x822(h)x297(d)mm
- CE, UL, CSA certified.
- Operative to 60°C
- 500-690V AC
- 90kW/125hp (normal duty), 55kW/75hp (heavy duty) power
- 331(w)x630(h)x297(d)mm
- CE, UL, CSA certified
- Operative to 60°C
- 600V AC
- 22kW/30hp (normal duty), 15kW/20hp (heavy duty) power
- 246(w)x420(h)x242(d)mm
- CE, UL, CSA certified
- Operative to 60°C
Why choose Schneider Electric's Altivar 930?
Do you need help to choose your Altivar Drives?
Use this simple selector to find the best fit for your needs. Help Me ChooseFAQs
The ATV930 is designed for demanding industrial process applications requiring high performance, precision, and connectivity. It supports:
- Pumps and fans in water, wastewater, HVAC, and energy
- Compressors and blowers in oil & gas, mining, and chemicals
- Centrifuges, mixers, and extruders in food & beverage, pharma, and heavy industry
- Master/slave configurations for multi-motor systems
It supports asynchronous and synchronous motors from 0.75 kW to 800 kW, with advanced control for torque, speed, and energy optimization.
Yes. The ATV930 is fully integrated into EcoStruxure™ Plant and Process and supports:
- Embedded protocols: Modbus TCP, Ethernet/IP, CANopen, Modbus RTU
- Optional modules: Profibus DP, Profinet, EtherCAT, DeviceNet, CANopen
- Integration with PLCs: Modicon M340, M580, and SCADA systems
- SoMove and EcoStruxure Control Expert: for configuration, diagnostics, and safety setup
It also includes a web server and data logging for remote diagnostics and maintenance.
The ATV930 offers extensive connectivity:
- Standard embedded:
- Ethernet: Modbus TCP, Ethernet/IP
- Serial: Modbus RTU, CANopen

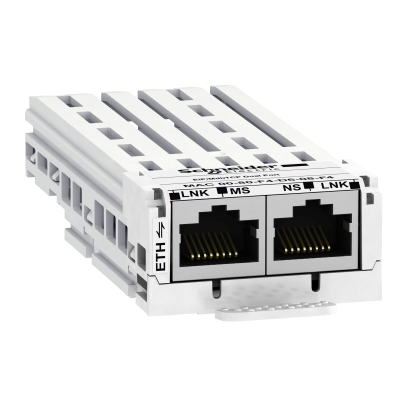

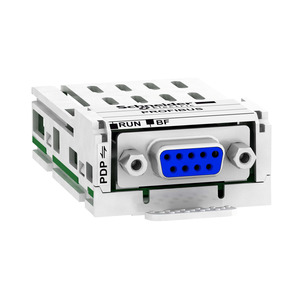

- Optional communication cards: Profibus DP, Profinet, EtherCAT, DeviceNet, CANopen daisy chain
- Web server: for real-time monitoring and diagnostics
- USB and Bluetooth: for local configuration via SoMove
This makes it ideal for integration into modern industrial networks and IIoT environments.
The ATV930 includes a wide range of embedded services and protection features:
- Safe Torque Off (STO) as standard
- Optional safety functions: SS1, SLS, SMS, GDL (SIL2/SIL3 compliant)
- Energy dashboard and process monitoring
- Asset and drift monitoring
- Stop & Go function to reduce energy consumption
- Conformal coating (3C3/3S2) for harsh environments
- Integrated EMC filter and IP21/IP54 options
These features ensure high availability, safety, and energy efficiency.
To select the correct ATV930 model, consider:
- Motor type: asynchronous or synchronous
- Power rating: from 0.75 kW to 800 kW
- Voltage class:
- 380–480 V
- 500–690 V
- Application type: pump, fan, compressor, extruder, etc.
- Environment:
- Harsh or corrosive → choose models with 3C3/3S2 coating
- IP21 or IP54 depending on installation
- Control and safety needs:
- Basic STO or extended safety functions
- Communication protocols for integration
- Master/slave or multi-motor control
