Altivar 320
Discover our full range of drives for 3 phase synchronous and asynchronous motors - 0.18 to 22 kwReduce your footprint reduce your costs Small and powerful design with book and compact form factors.
Rapid commissioning/recommissioning Instantly copy and paste your machine configurations through the innovative multi-loader tool and superior Schneider Electric support.
Seamless integration reducing design time Embedded APIs with most common automation architectures as standard.
Monitor remotely and decrease downtime Through out of the box robustness, secure remote machine monitoring and harsh environment protection to 60°C.
- 0.18 to 22 kW (0.25 - 30 hp) frequency converter
- For 3 phase synchronous and asynchronous motors
- 200/400/600v supported voltages
- IP66 up to 7.5KW
Popular products

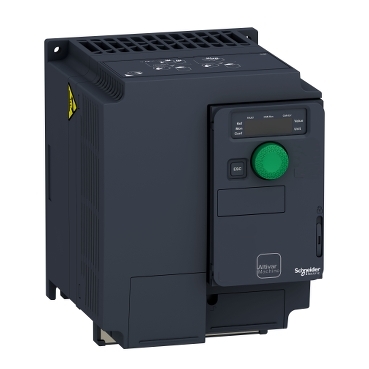

Schneider Electric Altivar 320 SCHATV320U40S6C Variable speed drive
- 525V to 600V AC
- 4kW/2hp power
- 6.1A nominal current
- 140(w)x158(d)x184(h)mm
- CE, UL, CSA, NOM, EAC and RCM certified
- Operative to 60°C

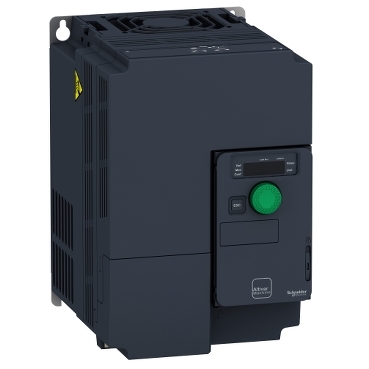

Schneider Electric Altivar 320 SCHATV320U75S6C Variable speed drive
- 525V to 600V AC
- 7.5kW/2hp power
- 11A nominal current
- 150(w)x178(d)x232(h)mm
- CE, UL, CSA, NOM, EAC and RCM certified
- Operative to 60°C
Schneider Electric Altivar 320 SCHATV320U22M3C Variable speed drive
- 200V to 240V AC
- 2.2kW/2hp power
- 11A nominal current
- 105(w)x138(d)x143(h)mm
- CE, UL, CSA, NOM, EAC and RCM certified
- Operative to 60°C
Schneider Electric Altivar 320 SCHATV320U15N4C Variable speed drive
- 380V to 500V AC
- 1.5kW/2hp power
- 4.1A nominal current
- 105(w)x158(d)x142(h)mm
- CE, UL, CSA, NOM, EAC and RCM certified
- Operative to 60°C
Why choose Schneider Electric's Altivar 320?
Do you need help to choose your Altivar Drives?
Use this simple selector to find the best fit for your needs. Help Me ChooseOptimize your workflow with these accessories
Schneider Electric Multi-loader SCHVW3A8121 Programable Multi-loader, for use with ATV12, 312, 61, 71 Drives. Shop Now
Schneider Electric Simple Loader SCHVW3A8120 This simple loader tool allows duplication of settings and configurations between Drives. Shop Now
FAQs

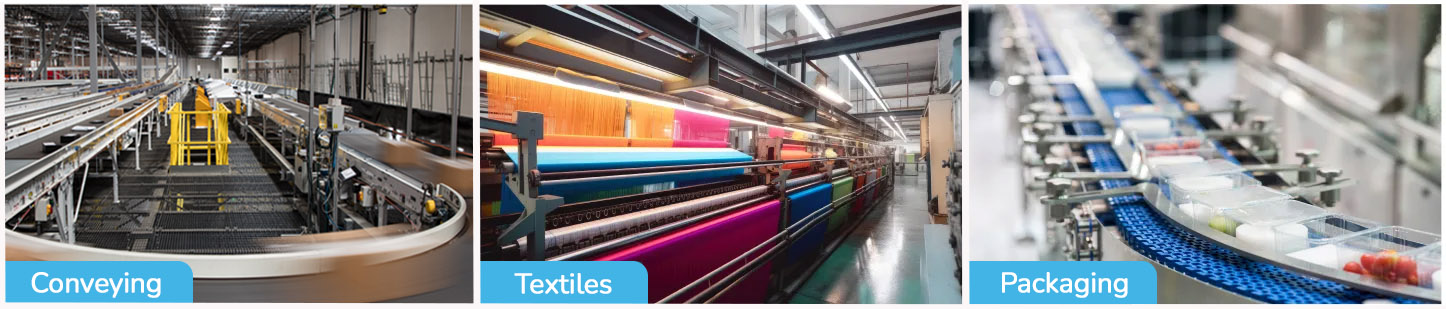

Altivar 320 is designed for both simple and complex machine applications, offering reliable control for asynchronous and synchronous motors from 0.18 to 15 kW. It is ideal for:
- Material handling: conveyors, hoists, automated storage systems
- Packaging and processing: bagging, labeling, food & beverage machinery
- Textile and material working: cutting, shaping, spinning
- Pumps, fans, and mixers: with energy-efficient motor control algorithms
Yes. ATV320 is fully integrated into Schneider Electric’s MachineStruxure™ automation platform and supports:
- Embedded protocols: Modbus RTU and CANopen
- Optional communication cards: Modbus TCP, Ethernet/IP, Profinet, EtherCAT, Powerlink, Profibus DP, DeviceNet
- SoMove software: for configuration, diagnostics, and safety setup (via USB, Bluetooth, or Ethernet)
- PLCopen-compliant function blocks: for seamless integration with Schneider PLCs such as Modicon M221, M241, and M251
ATV320 offers a wide range of connectivity options to fit various automation architectures:
- Embedded: Modbus RTU, CANopen
- Optional communication cards:
- Ethernet-based: Modbus TCP, Ethernet/IP, Profinet, EtherCAT, Powerlink
- Serial-based: Profibus DP, DeviceNet
- CANopen daisy chain: for multi-drive topologies
- I/O-based control: for standalone or basic applications
- Web server: available via optional Ethernet cards, for remote diagnostics and monitoring
ATV320 includes integrated safety functions compliant with the Machinery Directive 2006/42/EC and IEC 61800-5-2 standards:
- STO (Safe Torque Off) - SIL3 / PL e (standard on all models)
- SS1 (Safe Stop 1), SLS (Safe Limited Speed), SMS (Safe Maximum Speed) - SIL2 / PL d (available on selected models or via optional safety modules)
- GDL (Guard Door Lock) - typically implemented externally, not embedded in the drive
To select the appropriate ATV320 model, consider the following criteria:
- Motor type: asynchronous or synchronous
- Power rating: from 0.18 to 15 kW
- Voltage class
- 200-240 V single-phase → M2
- 200 240 V three-phase → M3
- 380-500 V three-phase → N4
- 525-600 V three-phase → S6

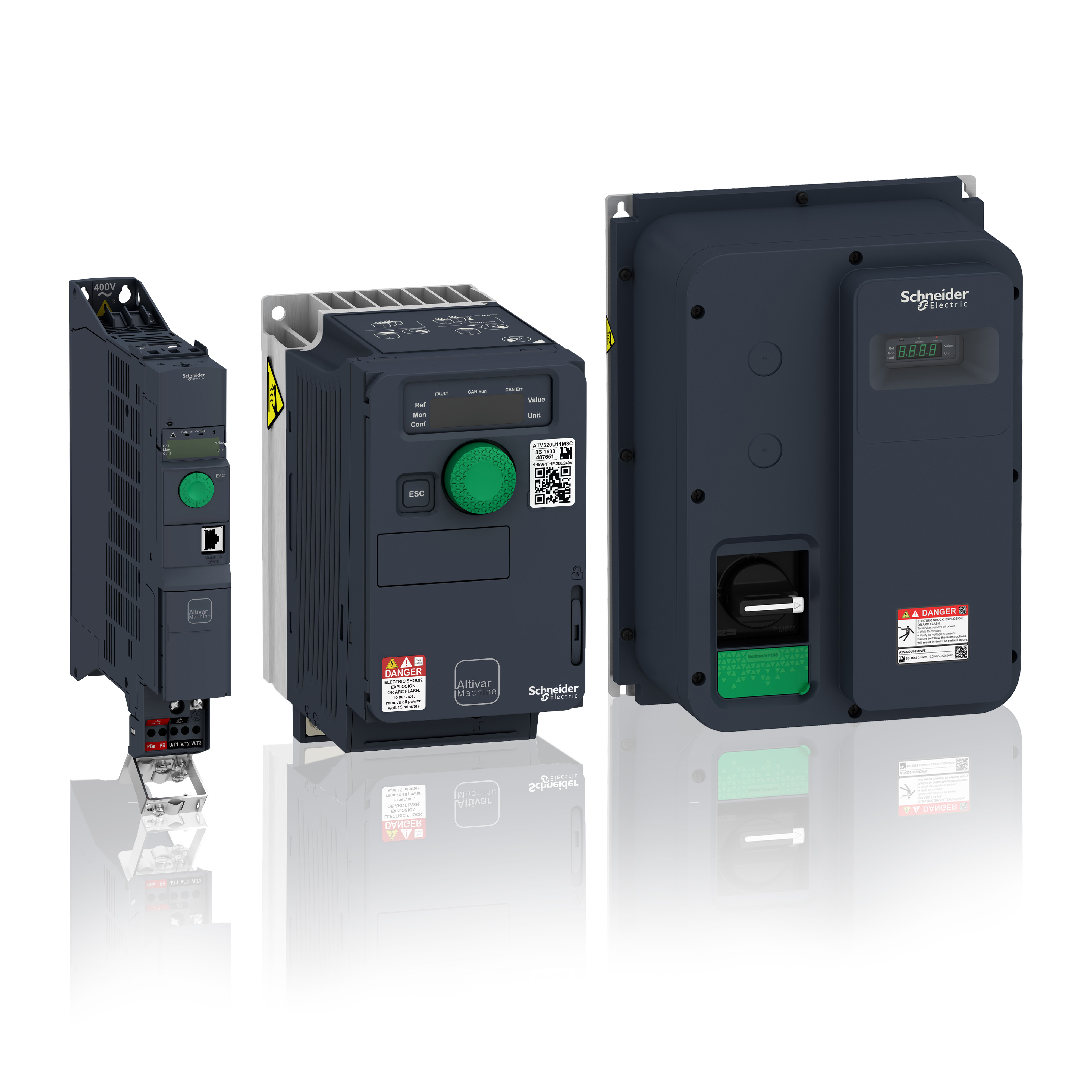

- Form factor:
- Book: for side-by-side mounting in narrow enclosures
- Compact: for shallow cabinets or direct machine integration
- Environmental conditions:
- For harsh environments, choose models with 3C3/3S2 coating
- For dusty or washdown areas, consider IP65/IP66 versions
- Communication needs: Select models with appropriate embedded protocols or optional fieldbus cards based on your network architecture
